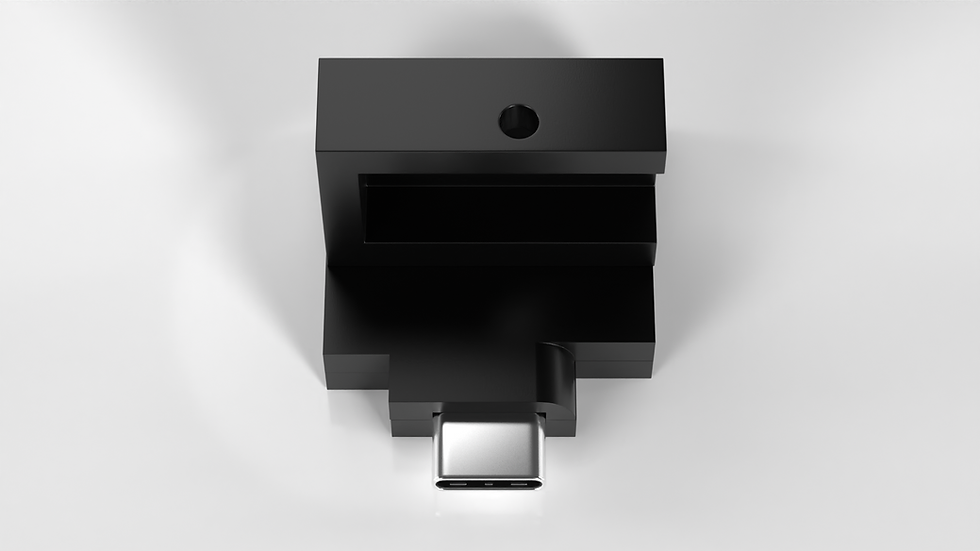

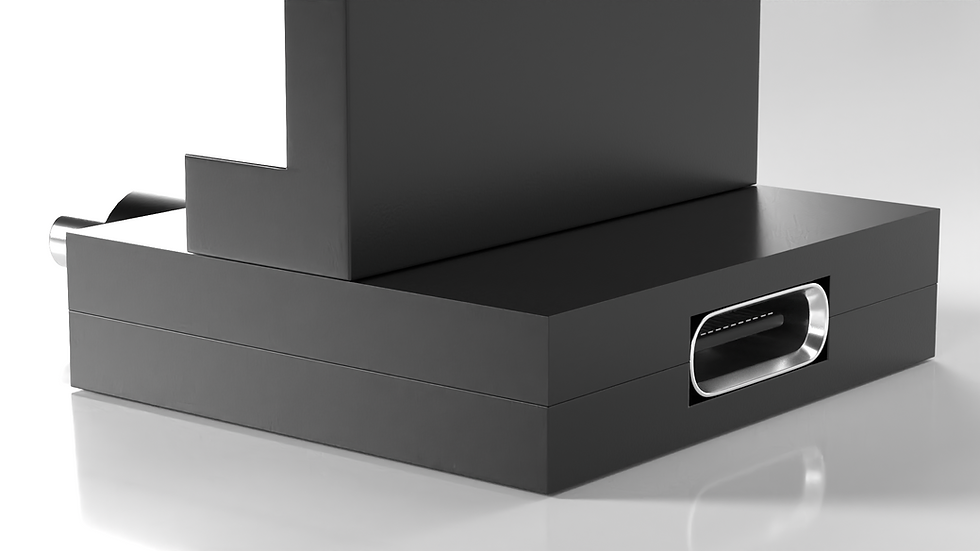

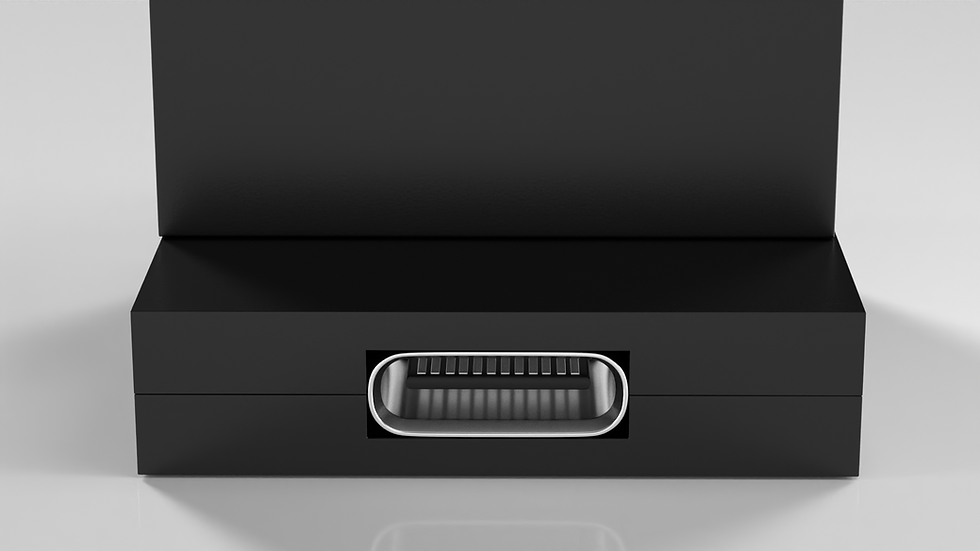

MultispeQ Version 1 CaliQ Adapter

Case

• 5500 mAh internal battery, will last all day for typical use

• Ergonomic design, right or left handed

• Measure cuvette (algae) or leaf seamlessly

Sensors

• Available LEDs and detectors for spectroscopy

  LEDs:
  448 nm, 530 nm, 590 nm, 655 nm (2x), 730 nm, 810 nm, 880 nm, 950 nm (2x)

  Detectors:
  400-700 nm, 700-1150 nm

• Automatically adds location and time stamp to all measurements

• Ambient temperature ± 0.5 °C

• Contactless leaf temperature ± 0.1 °C in the 30 - 40 °C range

• Relative humidity ± 3 %

• Barometric pressure ± 0.25 %

• Measure leaf angle (wilt) and cardinal direction

• External sensor connector for ultimate modability

Usability

• Automatic firmware updates through Mobile or Desktop App

• Optimized power management to reduce overall power consumption

• Collected measurements will be cached, allowing you to take measurements in remote locations.

• Data can be easily viewed and analyzed in your browser.

• Libraries for advanced analysis in R or Python are available.

Measurements

• Measure fluorescence base parameters for plants and algae including ΦII, LEF, NPQ, qE, qI, qL, qPand absorbance based parameters like vH+, gH+, ECSt

• Record abiotic factors including ambient temperature, relative humidity, barometric pressure and altitude as well as contactless leaf temperature, leaf angle and leaf direction

• Flexible, system to create your own measurement protocols and code to analyse your data

• Port for adding additional sensors (USB 3.0)
